9-position, 1-level PCB terminal block with straight, side-stackable orientation. Features brass contacts with tin plating, rated for 12A and 300V. Housing is green, UL94 V-0 flammability rated, and operates from -40°C to 105°C. Through-hole mount with solder termination, accepting wire gauges from 14AWG to 30AWG.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
TE Connectivity 284392-9 technical specifications.
General
Closed End
No (Without)
Color
Green
Contact Material
Brass
Contact Plating
Tin
Current
12A
Current Rating
12A
Depth
8.2mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Green
Interlock
Yes (With)
Length
30.98mm
Max Current Rating
12A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Levels
1
Number of Positions
9
Number of Positions Per Level
9
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Box
Pitch
0.1499inch
Plating
Brass
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
Yes (With)
Tail Length
3.5mm
Termination
Solder
Voltage
300V
Voltage Rating
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 284392-9 Datasheet
Download the complete datasheet for TE Connectivity 284392-9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

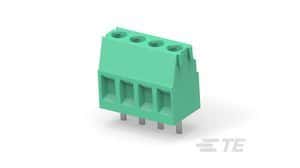

Product Images
