4-position, 1-row, right-angle terminal block with 3.81mm pitch. Features tin-plated bronze contacts, a green nylon housing, and a 11A current rating. Rated for 300V AC, operating temperature range of -40°C to 105°C, and UL94 V-0 flammability. Supports 30AWG wire gauge and offers side-stackable mounting.
Voltage300V
Current11A
Voltage Rating300V
Current Rating11A
Quick Jump:
Technical Specifications
TE Connectivity 284507-4 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Tin
Current
11A
Current Rating
11A
Depth
15.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Green
Interlock
No (Without)
Lead Free
Lead Free
Length
15.24mm
Material
Nylon
Max Current Rating
11A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Free Hanging, Through Hole, PCB
Number of Circuits
4
Number of Contacts
4
Number of Levels
1
Number of Poles
4
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
150
Packaging
Bulk
Pitch
0.1499inch
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Width
15.5mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 284507-4 Datasheet
Download the complete datasheet for TE Connectivity 284507-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

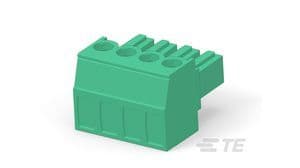

Product Images
