Shrouded header, wire-to-board connector system, featuring 3 positions and 1 row with a 1.5mm pitch. Male pin contacts made of brass with tin plating and a 2A current rating. Straight, through-hole mounting with solder termination and a 3mm tail length. Nylon insulation in grey, with a UL94 V-0 flammability rating and a maximum operating temperature of 221°C. Compliant with ELV and RoHS standards.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 292207-3 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Color
Grey
Connector System
Wire-to-Board
Contact Current Rating
2A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
2.4mm
Contact Plating
Tin
Contact Retention
Yes (With)
Contact Shape
Square
Contact Type
Male Pin
Depth
4.7mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
0.33inch
Housing Color
Natural
Insulation Color
Grey
Insulation Material
Nylon
Lead Free
Lead Free
Length
0.2756inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-22°C
Max Voltage Rating (AC)
50V
Max Voltage Rating (DC)
5.05kV
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
2150
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
1.5mm
Plating Thickness
2um
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Mini CT
Shape
Rectangular
Strain Relief
No (Without)
Tail Length
3mm
Termination
Solder
Voltage Rating (AC)
50V
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 292207-3 Datasheet
Download the complete datasheet for TE Connectivity 292207-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

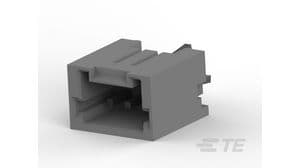

Product Images
