USB 2.0 Type A receptacle connector for cable-to-board applications. Features a right-angle, through-hole mount with 4 positions and 4 contacts. Offers a 1A current rating, 30V voltage rating, and gold-plated copper alloy contacts. Includes shielding and a black housing with a UL94 V-0 flammability rating. Operates within a temperature range of -67°C to 185°C.
Current Rating1A
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
TE Connectivity 292303-1 technical specifications.
General
Approvals
UL
Circuit Application
Signal
Color
Black
Connector System
Cable-to-Board
Contact Current Rating
1A
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
1A
Depth
14mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Halogen Free
Halogen Free
Housing Color
Black
Insulation Color
Black
Lead Free
Lead Free
Length
14.63mm
Max Operating Temperature
185°C
Min Operating Temperature
-67°C
Mode
Singlemode
Mount
Through Hole, Horizontal
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Orientation
Right Angle
Package Quantity
30
Packaging
Rail/Tube
PCB Thickness
0.062inch
Pitch
2.5mm
Plating
Bright, Tin
Plating Thickness
0.76um
Reach SVHC Compliant
No
RMS Current (Irms)
1A
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
0.112inch
Termination
Through Hole
USB Standard
USB 2.0
Voltage Rating (AC)
30V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 292303-1 Datasheet
Download the complete datasheet for TE Connectivity 292303-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

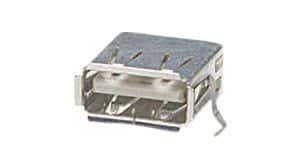

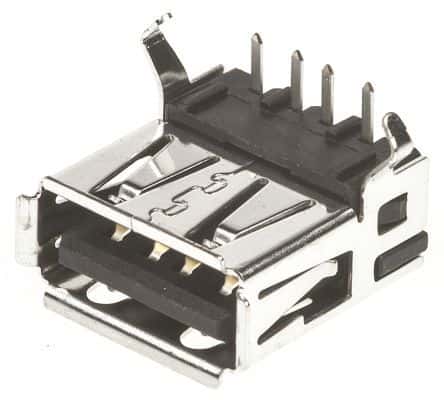

Product Images
