This right-angle, wire-to-board power connector features a 4-position configuration with a 2.54mm pitch. It offers a 45A contact current rating and utilizes copper alloy contacts with silver plating for mating. The connector has a 630V voltage rating, a UL94 V-0 flammability rating, and is designed for through-hole mounting with PCB retention. Its black housing and insulation are made from glass and plastic respectively, and it is RoHS compliant.
Voltage Rating630V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-1318983-6 technical specifications.
General
| Approvals | UL |
| Connector System | Wire-to-Board |
| Contact Current Rating | 45A |
| Contact Finish - Mating | SILVER |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Contact Retention | No (Without) |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Depth | 45mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Halogen Free | Halogen Free |
| Height | 29.36mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Glass |
| Lead Free | Contains Lead |
| Length | 0.888inch |
| Mating Alignment | Yes (With) |
| Mating Retention | No (Without) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 630V |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 2.4mm |
| Pitch | 0.4inch |
| Preloaded | Yes |
| Radiation Hardening | No |
| Ratings | IP20 |
| RoHS Compliant | Yes |
| Row Spacing | 10.16mm |
| Sealable | No (Without) |
| Selectively Loaded | No (Without) |
| Series | Dynamic D-5200 |
| Shielding | Unshielded |
| Shrouded | Yes (With) |
| Strain Relief | No (Without) |
| Tail Length | 3.8mm |
| Termination | Solder |
| VDE Tested | No |
| Voltage Rating | 630V |
| Width | 1.77inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 3-1318983-6 Datasheet
Download the complete datasheet for TE Connectivity 3-1318983-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

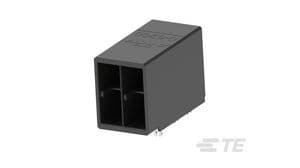

Product Images
