Voltage Rating150V
Current Rating20A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 3-1437667-2 technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
20A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
12.7mm
Housing Color
Black
Insulation Material
Thermoplastic
Lead Free
Lead Free
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Number of Wire Entries
9
Orientation
Straight
Package Quantity
480
Packaging
Bulk
Pitch
8.26mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
4DB, Buchanan
Terminal Finish
Zinc
Terminal Material
Steel
Termination
Solder
Voltage Rating
150V
DC Rated Voltage
150V
Width
75.9mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3-1437667-2 Datasheet
Download the complete datasheet for TE Connectivity 3-1437667-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

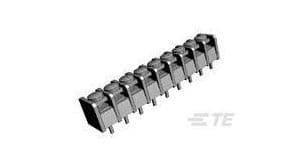

Product Images
