TE CONNECTIVITY

3-1634223-2

Datasheet

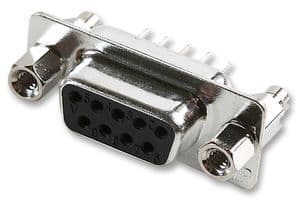

15 Pos Female D-Sub Connector, Straight, Through Hole, Gold Contacts

TE Connectivity

3-1634223-2

Name: 3-1634223-2 TE Connectivity
Brand: TE Connectivity
SKU: 3-1634223-2

15 Pos Female D-Sub Connector, Straight, Through Hole, Gold Contacts

15-position, 2-row D-subminiature connector with female contacts. Features gold-plated bronze signal contacts with a 0.204-inch post length and tin plating. Straight, through-hole mounting orientation with a 2.77mm pitch and 1.57mm PCB thickness compatibility. Black metal housing with gold plating and steel shell, rated for 250V DC and 3A current. Includes mating connector lock and PCB mount retention.

PackageMetal

Voltage Rating250V

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 3-1634223-2 technical specifications.

General

Approvals	UL
Body Material	Metal
Body Plating	Gold
Package/Case	Metal
Color	Black
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.204inch
Contact Type	Signal
Current Rating	3A
Depth	12.55mm
Dielectric Material	Thermoplastic
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
Lead Free	Lead Free
Length	39.2mm
Material	Metal, Steel
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (DC)	250V
Max Voltage Rating (DC)	250V
Mount	Through Hole
Number of Contacts	15
Number of Ports	1
Number of Positions	15
Number of Rows	2
Orientation	Straight
Package Quantity	70
Packaging	Tray
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	2.77mm
Plating	Nickel
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	A
Termination	Solder
Voltage Rating	250V
Width	10.65mm
Working Voltage	250V
