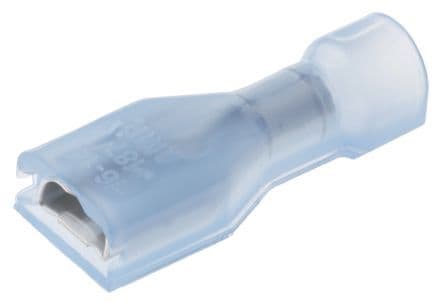

Insulated receptacle terminal for discrete wire, featuring a straight, free-hanging orientation. Constructed with a brass body and tin plating, it supports wire gauges from 14 to 16 AWG with a maximum insulation diameter of 4.06mm. The nylon insulation is blue, rated UL94 V-2, and designed for a maximum operating temperature of 105°C and a voltage rating of 600V. This component offers insulated wire support and a mating tab width of 4.75mm.
Storage0.032inch
Voltage Rating600V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 3-520125-2 technical specifications.
General
Body Material
Brass
Body Plating
Tin
Color
Blue
Contact Plating
Tin
Depth
8.53mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Blue
Insulation Diameter
4.06mm
Insulation Material
Nylon
Lead Free
Lead Free
Length
0.855inch
Material
Brass
Mating Tab Width
4.75mm
Max Operating Temperature
105°C
Mount
Free Hanging
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Ultra-Fast
Size
0.032inch
Terminal Material
Brass
Termination
Receptacle
Voltage Rating
600V
Width
8.53mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
14AWG
Wire/Cable Diameter
0.16inch
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 3-520125-2 Datasheet
Download the complete datasheet for TE Connectivity 3-520125-2 to view detailed technical specifications.
