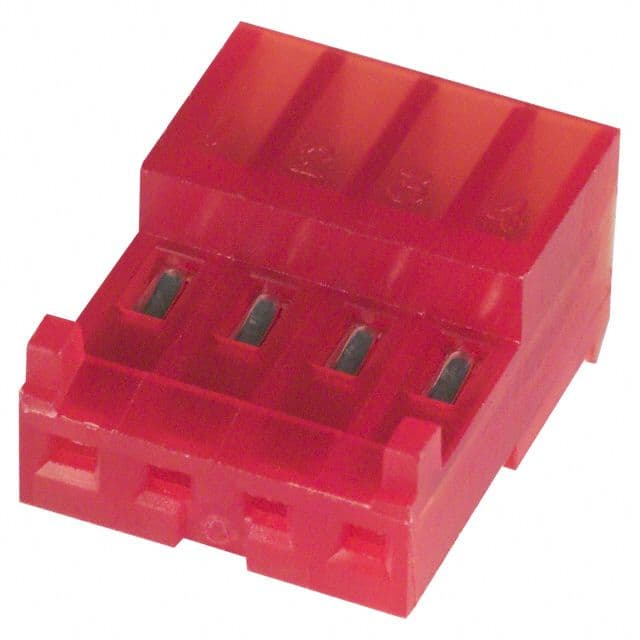

4 Pos 2.54mm Pitch Female Socket Receptacle, 5A, 250V, IDC, Right Angle

TE Connectivity

3-643813-4

Name: 3-643813-4 TE Connectivity
Brand: TE Connectivity
SKU: 3-643813-4

4 Pos 2.54mm Pitch Female Socket Receptacle, 5A, 250V, IDC, Right Angle

4-position, 1-row wire-to-board receptacle with a 2.54mm lead pitch. Features female socket contacts made of copper alloy with tin, matte plating and nickel underplate. Rated for 5A current and 250V AC, operating between -67°C and 221°C. Includes strain relief and mating retention, with IDC termination for discrete or ribbon wire up to 22AWG. Housing is white with a red color accent, and the assembly is UL94 V-2 flammability rated.

Voltage Rating250V

Current Rating5A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 3-643813-4 technical specifications.

General

Approvals	CSA
Backwall/Post Interruptions	No (Without)
Color	Red
Connector System	Wire-to-Board
Contact Current Rating	5A
Contact Gender	Female
Contact Material	Copper Alloy
Contact Plating	Tin, Matte
Contact Retention	Yes (With)
Contact Type	Female Socket
Current Rating	5A
Depth	6.99mm
Flammability Rating	UL94 V-2
Gender	Receptacle
Height	6.99mm
Housing Color	White
Insulation Diameter	1.52mm
Lead Pitch	2.54mm
Length	10.16mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	4
Number of Positions	4
Number of Rows	1
Orientation	Right Angle
Package Quantity	500
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pitch	2.54mm
Plating Thickness	5.08um
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	MTA-100
Strain Relief	Yes (With)
Termination	IDC
Underplate Material	Nickel
Voltage Rating	250V
Voltage Rating (AC)	250V
Wire/Cable Gauge	22AWG
Wire/Cable Type	Discrete, Ribbon
