3-643819-3

Datasheet

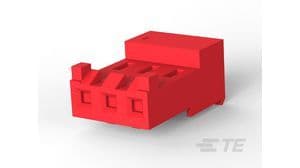

3 Pos 22AWG IDC Receptacle, 600V, 7A, Right Angle, Red

TE Connectivity

3-643819-3

Name: 3-643819-3 TE Connectivity
Brand: TE Connectivity
SKU: 3-643819-3

3 Pos 22AWG IDC Receptacle, 600V, 7A, Right Angle, Red

3-position, 1-row wire-to-board header and receptacle assembly with a 0.156-inch pitch. Features female socket contacts made of copper alloy with tin, matte plating and nickel underplate. Rated for 7A current and 600V AC voltage, with a maximum operating temperature of 221°C. The red nylon housing is UL94 V-2 flammability rated and includes strain relief. Designed for discrete wire termination via IDC, accommodating 22AWG wire.

Voltage Rating600V

Current Rating7A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 3-643819-3 technical specifications.

General

Approvals	CSA
Backwall/Post Interruptions	No (Without)
Body Material	Nylon
Color	Red
Connector System	Wire-to-Board
Contact Current Rating	7A
Contact Gender	Female
Contact Material	Copper Alloy
Contact Plating	Tin, Matte
Contact Retention	Yes (With)
Contact Type	Female Socket
Current Rating	7A
Depth	9.02mm
Flammability Rating	UL94 V-2
Gender	Receptacle
Height	9.02mm
Housing Color	Red
Insulation Diameter	0.095inch
Length	11.89mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	600V
Mount	Free Hanging, Cable
Number of Contacts	3
Number of Positions	3
Number of Power Positions	3
Number of Rows	1
Orientation	Right Angle
Package Quantity	500
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pitch	0.156inch
Plating Thickness	80um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	MTA-156
Strain Relief	Yes (With)
Termination	IDC
Underplate Material	Nickel
Voltage Rating	600V
Voltage Rating (AC)	600V
Wire/Cable Gauge	22AWG
Wire/Cable Type	Discrete
