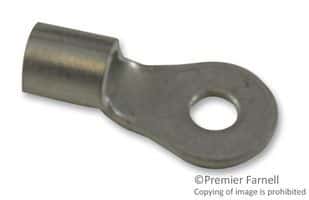

Crimp-style ring tongue terminal for 10-12 AWG copper wire. Features a tin-plated copper contact for reliable conductivity and a straight, non-insulated design. Terminal measures 19.43mm in length with a 9.53mm width and accepts M3.5 stud sizes up to 3.68mm diameter. Packaged in a carton of 500 units, this component is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 31112 technical specifications.
General
Contact Material
Copper
Contact Plating
Tin
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
No
Insulation
Non-Insulated
Lead Free
Not Applicable
Length
19.43mm
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
500
Packaging
Carton
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Budget
Stud Diameter
3.68mm
Stud Size
M3.5
Termination
Crimp
Width
9.53mm
Wire Gauge (Max)
10AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
10AWG
Compliance
RoHS
Compliant
