Ring tongue terminal for 16-22 AWG wire, featuring a copper body with tin plating and a nylon insulation in red. This female, straight-oriented terminal offers insulated wire support and a voltage rating of 300V AC. It utilizes copper and silver contact materials with tin plating, and a stud diameter of 0.265 inches (M6).
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 31894 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Red
Contact Material
Copper, Silver
Contact Plating
Tin
Depth
11.91mm
Gender
Female
Government Qualified
Yes
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
0.14inch
Insulation Material
Nylon
Lead Free
Lead Free
Length
1.078inch
Material
Copper, Tin, PVC
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PIDG
Stud Diameter
0.265inch
Stud Size
M6
Termination
Crimp
Tongue Thickness
0.79mm
Voltage Rating (AC)
300V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
22AWG
Wire/Cable Diameter
3.56mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 31894 Datasheet
Download the complete datasheet for TE Connectivity 31894 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

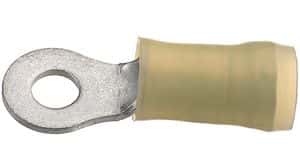

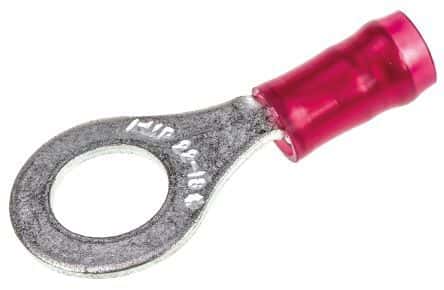

Product Images
