Female, straight, insulated terminal for 14-16 AWG wire. Features a copper body with tin plating and a blue nylon insulation. Rated for 300V AC, this terminal has a stud diameter of 4.17mm (M4) and a tongue thickness of 0.84mm. Insulated wire support is integrated.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 320560 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Blue
Contact Material
Copper
Contact Plating
Tin
Depth
8.71mm
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Blue
Insulation Diameter
0.15inch
Insulation Material
Nylon
Length
0.859inch
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
4.17mm
Stud Size
M4
Termination
Crimp
Tongue Thickness
0.84mm
Voltage Rating (AC)
300V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
14AWG
Wire/Cable Diameter
3.81mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 320560 Datasheet
Download the complete datasheet for TE Connectivity 320560 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

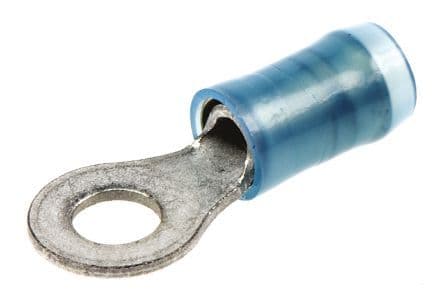

Product Images
