Female ring tongue terminal for 16-22AWG wire. Features copper body and contact with tin plating. Terminal length is 10.74mm with a 0.138-inch stud diameter, compatible with M3.5 studs. Non-insulated, free-hanging mount with crimp termination. RoHS compliant and ELV compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 321289 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Contact Material
Copper
Contact Plating
Tin
Depth
5.54mm
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
No
Insulation
Non-Insulated
Lead Free
Not Applicable
Length
10.74mm
Material
Copper
Mount
Free Hanging
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Series
Solistrand
Stud Diameter
0.138inch
Stud Size
M3.5
Termination
Crimp
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 321289 Datasheet
Download the complete datasheet for TE Connectivity 321289 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

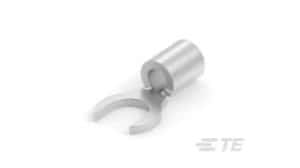

Product Images
