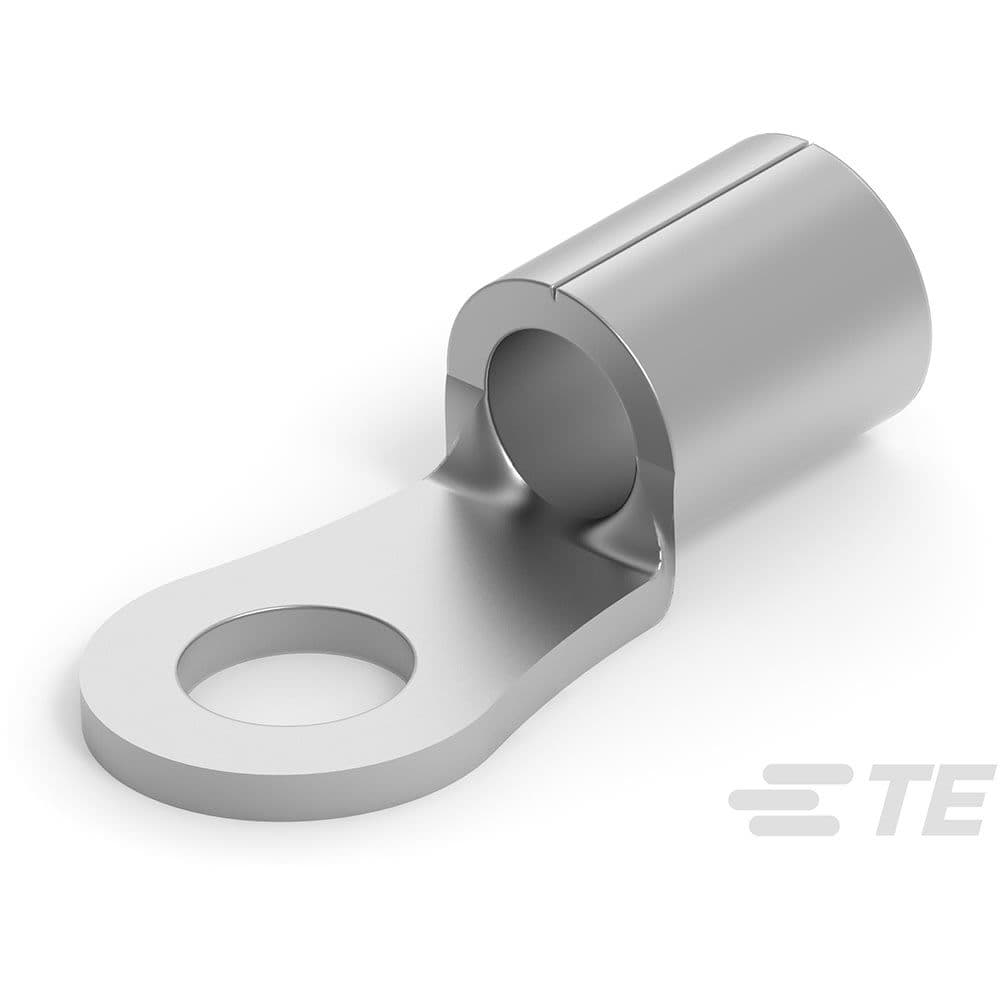

This terminal is made from copper with a tin plating thickness of 2.54um. It is non-insulated and has a length of 17.98mm. The terminal is designed for crimp termination and is available in a package quantity of 2500. It is compliant with RoHS regulations and is suitable for use in general applications.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 322454-1 technical specifications.
General
| Contact Material | Copper |
| Contact Plating | Tin |
| ELV | Compliant |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Length | 17.98mm |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 2 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Solistrand |
| Stud Diameter | 4.34mm |
| Stud Size | M4 |
| Termination | Crimp |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 322454-1 Datasheet
Download the complete datasheet for TE Connectivity 322454-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
