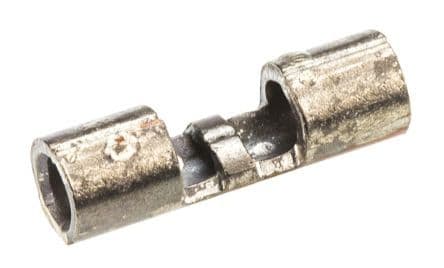

High-temperature, non-insulated butt splice terminal for 16-14 AWG wire. Features nickel contact material and a straight, male orientation. With a 4.19mm diameter and 13.44mm length, this crimp termination component is RoHS compliant.
Quick Jump:
Technical Specifications
TE Connectivity 323878 technical specifications.
General
Color
Orange
Contact Material
Nickel
Diameter
4.19mm
ELV
Compliant
Features
High Temperature
Gender
Male
Government Qualified
No
Insulated Wire Support
No
Insulation
Non-Insulated
Lead Free
Not Applicable
Length
13.44mm
Material
Nickel
Number of Wire Entries
2
Orientation
Straight
Outside Diameter
0.165inch
Package Quantity
1000
Packaging
Loose Piece
Plating
Unplated
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
STRATO-THERM
Termination
Crimp
Thickness
0.76mm
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 323878 Datasheet
Download the complete datasheet for TE Connectivity 323878 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
