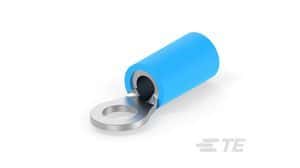

Ring tongue terminal for 14-16 AWG wire, featuring a copper body with tin plating and vinyl insulation. This female, insulated terminal offers a 600V AC voltage rating and a 18.16mm length with a 6.35mm depth. Designed for free-hanging mounting, it supports insulated wire and has a circular termination with a stud size of M3.5. RoHS compliant and supplied in loose piece packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 32957 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Blue
Contact Material
Copper
Contact Plating
Tin
Depth
6.35mm
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Diameter
0.145inch
Insulation Material
Vinyl
Length
18.16mm
Material
Copper
Mount
Free Hanging
Number of Holes
1
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Plasti-Grip
Stud Diameter
0.138inch
Stud Size
M3.5
Termination
Circular
Thickness
0.031inch
Tongue Thickness
0.84mm
Voltage Rating (AC)
600V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
14AWG
Wire/Cable Diameter
0.145inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 32957 Datasheet
Download the complete datasheet for TE Connectivity 32957 to view detailed technical specifications.
