This female, non-insulated ring tongue terminal is designed for 8AWG wire with a 23.7mm length and 11.91mm depth. Constructed from copper with tin plating, it features a copper and silver contact material also plated in tin. The terminal supports a maximum operating temperature of 170°C and is straight in orientation, suitable for M6 stud sizes. It is RoHS compliant and government qualified, offered in loose piece packaging.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 33461 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Package/Case
Metal
Color
Red
Contact Material
Copper, Silver
Contact Plating
Tin
Depth
11.91mm
ELV
Compliant
Gender
Female
Government Qualified
Yes
Heavy Duty
No
Insulated Wire Support
No
Insulation
Non-Insulated
Lead Free
Lead Free
Length
23.7mm
Material
Copper, Tin
Max Operating Temperature
170°C
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
100
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Solistrand
Stud Diameter
0.265inch
Stud Size
M6
Termination
Crimp
Wire/Cable Gauge
8AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 33461 Datasheet
Download the complete datasheet for TE Connectivity 33461 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

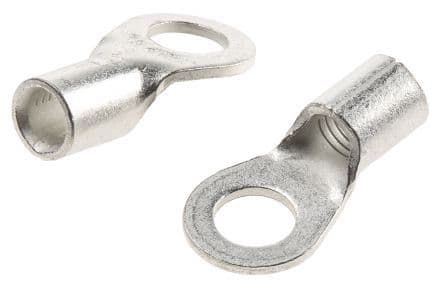

Product Images
