Female ring tongue terminal for 14-16 AWG wire, featuring a copper body with tin plating. This non-insulated terminal offers a straight orientation and a 6.35mm stud diameter (M6 size). Constructed from copper and tin, it operates up to 170°C and is RoHS compliant. The terminal has a length of 21.72mm and a thickness of 0.79mm.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34124 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Package/Case | Metal |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| Depth | 11.91mm |
| ELV | Compliant |
| Finish | Tin |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | No |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 21.72mm |
| Material | Copper, Tin |
| Max Operating Temperature | 170°C |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Solistrand |
| Stud Diameter | 6.35mm |
| Stud Size | M6 |
| Termination | Crimp |
| Thickness | 0.79mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Diameter | 2.1mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 34124 Datasheet
Download the complete datasheet for TE Connectivity 34124 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

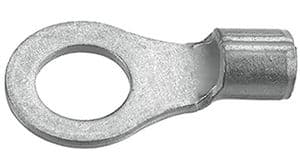

Product Images
