Ring tongue terminal for 16-22AWG wire, featuring a copper body with tin plating. This insulated terminal offers a straight, female orientation with a vinyl insulation in red, supporting up to 600V AC. It has a maximum operating temperature of 90°C and a minimum of -25°C, with a stud diameter of 3.68mm.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34142 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 5.54mm |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.14inch |
| Insulation Material | Vinyl |
| Jacket Material | Vinyl |
| Length | 17.37mm |
| Material | Copper |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Plasti-Grip |
| Stud Diameter | 3.68mm |
| Stud Size | M3.5 |
| Termination | Crimp |
| Tongue Thickness | 0.79mm |
| Voltage Rating (AC) | 600V |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Diameter | 3.56mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 34142 Datasheet
Download the complete datasheet for TE Connectivity 34142 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

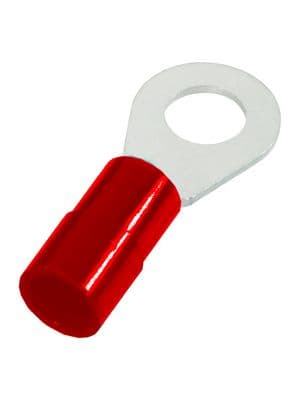

Product Images
