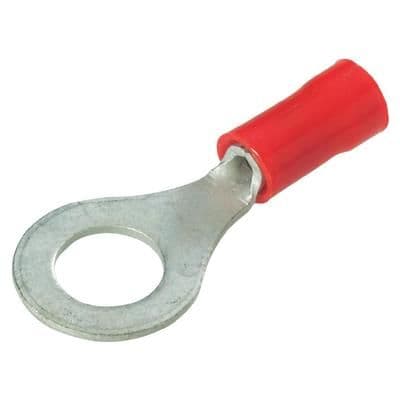

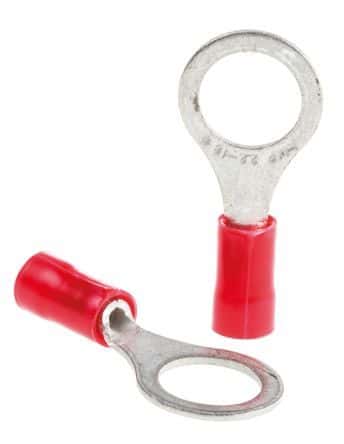

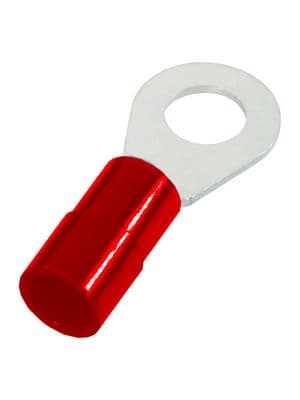

Insulated, free-hanging female terminal with a straight orientation. Features a copper body with tin plating and vinyl insulation in red. Designed for crimp termination, supporting wire gauges from 22AWG to 16AWG with a maximum operating temperature of 90°C and a voltage rating of 600V AC. Includes insulated wire support and a stud diameter of 0.328 inches (M8).
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34151 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Red
Contact Material
Copper, Silver
Contact Plating
Tin
Depth
11.91mm
Gender
Female
Government Qualified
No
Heavy Duty
No
Inside Diameter
3.68mm
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
3.56mm
Insulation Material
Vinyl
Jacket Material
Vinyl
Lead Free
Lead Free
Length
1.09inch
Material
Copper
Max Operating Temperature
90°C
Min Operating Temperature
-25°C
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
Plasti-Grip
Stud Diameter
0.328inch
Stud Size
M8
Termination
Crimp
Thickness
0.79mm
Tongue Thickness
0.79mm
Voltage Rating (AC)
600V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
3.56mm
Wire/Cable Gauge
-16AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 34151 Datasheet
Download the complete datasheet for TE Connectivity 34151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
