Female, insulated, straight-orientation terminal for 10-12 AWG wire. Features a copper body and contact with tin plating, and a yellow vinyl insulation. Rated for 600V AC, this free-hanging component has a stud diameter of 0.39 inches and a wire/cable diameter of 6.35mm. Dimensions include a length of 36.09mm, width of 15.1mm, and depth of 15.06mm. RoHS compliant and lead-free.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34173 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 15.06mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Yellow |
| Insulation Diameter | 5.84mm |
| Insulation Material | Vinyl |
| Lead Free | Lead Free |
| Length | 36.09mm |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating | Tin |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Plasti-Grip |
| Shrouded | No (Without) |
| Stud Diameter | 0.39inch |
| Termination | Crimp |
| Thickness | 1.02mm |
| Tongue Thickness | 1.02mm |
| Voltage Rating (AC) | 600V |
| Width | 15.1mm |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Diameter | 6.35mm |
| Wire/Cable Gauge | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 34173 Datasheet
Download the complete datasheet for TE Connectivity 34173 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

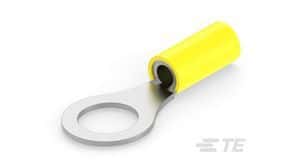

Product Images
