Insulated female splice connector designed for 22-14 AWG wire. Features a straight, straight orientation with a single wire entry. Constructed from copper with tin plating for both body and contact material. Vinyl insulation provides a 3.96mm insulation diameter and supports a maximum operating voltage of 300V. RoHS compliant and ELV compliant.
Quick Jump:
Technical Specifications
TE Connectivity 34304 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Red
Contact Material
Copper
Contact Plating
Tin
Diameter
3.96mm
ELV
Compliant
Gender
Female
Government Qualified
No
Insulated Wire Support
No
Insulation
Insulated
Insulation Diameter
3.96mm
Insulation Material
Vinyl
Lead Free
Not Applicable
Length
0.729inch
Material
Copper
Number of Wire Entries
1
Operating Supply Voltage
300V
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Crimp
DC Rated Voltage
300V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
22AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 34304 Datasheet
Download the complete datasheet for TE Connectivity 34304 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

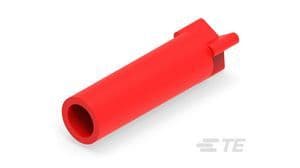

Product Images
