Female splice terminal for 16-22AWG wire, featuring a straight, insulated design with a 4.39mm insulation diameter. Constructed from copper with tin plating on both the body and contact for enhanced conductivity. Rated for 300V, this blue PVC insulated terminal operates within a temperature range of 0°C to 90°C. Supplied in loose piece packaging, it offers a 19.05mm length and is RoHS compliant.
Voltage Rating300V
Quick Jump:
Technical Specifications
TE Connectivity 34306 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Blue
Contact Material
Copper
Contact Plating
Tin
Diameter
4.39mm
ELV
Compliant
Gender
Female
Government Qualified
No
Insulated Wire Support
No
Insulation
Insulated
Insulation Diameter
4.39mm
Insulation Material
PVC
Lead Free
Not Applicable
Length
19.05mm
Material
Copper
Max Operating Temperature
90°C
Min Operating Temperature
0°C
Number of Wire Entries
1
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Crimp
Voltage Rating
300V
DC Rated Voltage
300V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
22AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 34306 Datasheet
Download the complete datasheet for TE Connectivity 34306 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

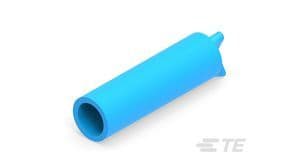

Product Images
