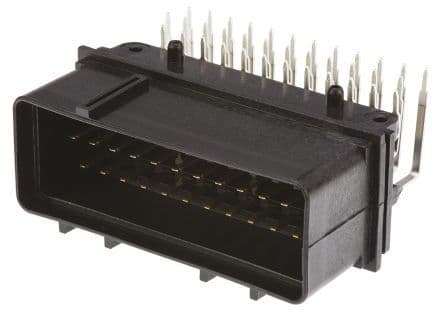

36-position, 3-row right-angle header for wire-to-board applications. Features brass and copper alloy contacts with gold plating, rated for 10A and 12V DC. Through-hole mounting with a 5mm pitch and 1.6mm PCB thickness compatibility. Black polyamide housing, unshielded, solder termination, and sealable design.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 344108-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Brass, Copper Alloy, Gold |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 10A |
| ELV | Compliant |
| Height | 48.5mm |
| Housing Color | Black |
| Insulation Material | Polyamide |
| Lead Free | Lead Free |
| Length | 70.8mm |
| Max Voltage Rating (DC) | 12V |
| Mount | Through Hole |
| Number of Contacts | 36 |
| Number of Ports | 1 |
| Number of Positions | 36 |
| Number of Rows | 3 |
| Number of Signal Positions | 36 |
| Orientation | Right Angle |
| Package Quantity | 117 |
| Packaging | Bulk |
| PCB Mount Alignment | Yes (With) |
| PCB Thickness | 1.6mm |
| Pitch | 5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.236inch |
| Sealable | Yes (With) |
| Series | EconoSeal III 070 |
| Shielding | Unshielded |
| Termination | Solder |
| Width | 1.909inch |
| RoHS | Compliant |
