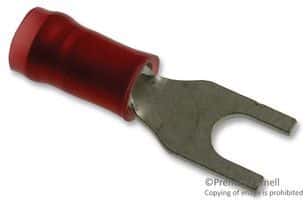

Female spade tongue terminal for 16-22AWG wire, featuring a copper body with tin plating and a red nylon insulation. This straight, insulated terminal offers a 300V AC voltage rating and a 3.68mm inside diameter, suitable for M3.5 stud sizes. Constructed from copper with silver contact material, it is RoHS compliant and sold in loose piece packaging.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 34541 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Red |
| Contact Material | Copper, Silver |
| Contact Plating | Tin |
| Depth | 6.35mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Inside Diameter | 3.68mm |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.14inch |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 0.85inch |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating | Tin |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | PIDG |
| Stud Diameter | 3.68mm |
| Stud Size | M3.5 |
| Terminal Material | Copper |
| Termination | Crimp |
| Tongue Thickness | 0.79mm |
| Voltage Rating (AC) | 300V |
| Width | 6.35mm |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Diameter | 3.56mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 34541 Datasheet
Download the complete datasheet for TE Connectivity 34541 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
