Male, straight, crimp-termination power contact for discrete wire, accommodating 20-14 AWG. Features brass contact material with tin plating, rated for 17A contact current and 28A current. Operates within a temperature range of -67°C to 221°C, with a voltage rating of 250V. UL94 V-2 flammability rating and RoHS compliant.
Voltage Rating250V
Current Rating28A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350389-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Contact Current Rating
17A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
28A
Depth
5.46mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
6.04mm
Insulation Diameter
4.57mm
Lead Free
Lead Free
Length
25.27mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350389-1 Datasheet
Download the complete datasheet for TE Connectivity 350389-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

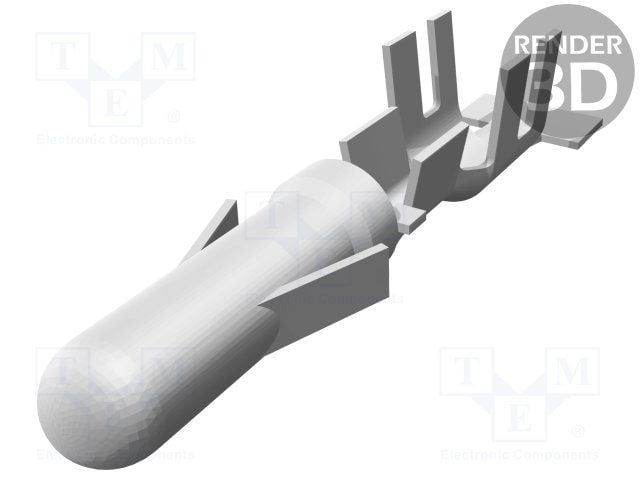

Product Images
