Power socket contact for wire-to-wire applications, featuring a straight, cable mount orientation. This female contact supports 14-20 AWG discrete wire, with a current rating of 19A and a maximum voltage rating of 600V. Constructed from brass with tin plating, it offers reliable contact retention and operates within a temperature range of -67°C to 221°C. Packaging is provided on tape and reel, with UL and VDE approvals.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 350536-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Contact Retention
Yes (With)
Contact Style
Socket
Contact Type
Power
Current Rating
19A
Depth
4.19mm
ELV
Compliant
Gender
Female
Height
4.19mm
Insulation Diameter
0.13inch
Lead Free
Lead Free
Length
20.07mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Contacts
1
Number of Ports
1
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
5000
Packaging
Tape and Reel
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350536-1 Datasheet
Download the complete datasheet for TE Connectivity 350536-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

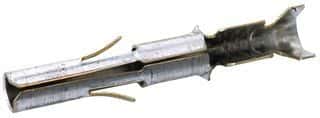

Product Images
