Six-position, wire-to-wire connector housing with a 6.35mm pitch, designed for straight, cable-mount applications. Features a 600V voltage rating, 19A current rating, and accommodates 10-30AWG wire. Constructed from UL94 V-0 rated nylon in a white housing color, operating between -67°C and 221°C. This connector system is RoHS compliant and CSA approved.
Voltage Rating600V
Current Rating19A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 350715-1 technical specifications.
General
Approvals
CSA
Color
Natural, Beige, White
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Retention
No (Without)
Contact Type
Male or Female
Current Rating
19A
Depth
27.3mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
White
Lead Free
Lead Free
Length
27.43mm
Material
Nylon
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging, Cable
Number of Circuits
6
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
6.35mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.25mm
Sealable
No (Without)
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
10AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350715-1 Datasheet
Download the complete datasheet for TE Connectivity 350715-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

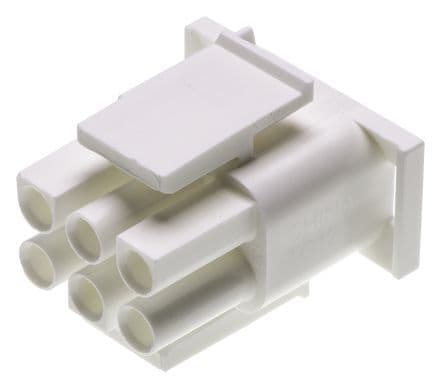

Product Images
