TE CONNECTIVITY

350762-5

Datasheet

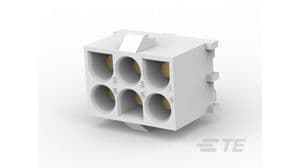

6 Pos Wire-to-Board Rectangular Connector, 19A, 600V, Gold/Tin

TE Connectivity

350762-5

Name: 350762-5 TE Connectivity
Brand: TE Connectivity
SKU: 350762-5

6 Pos Wire-to-Board Rectangular Connector, 19A, 600V, Gold/Tin

6-position, 3-row wire-to-board connector with a 6.35mm pitch, designed for power applications. Features female socket contacts with gold and tin plating, rated for 12A contact current and 19A overall current. Offers 600V AC and 600.6kV DC voltage ratings, with a maximum operating temperature of 221°C. Constructed with a natural nylon housing and insulation, it mounts via through-hole termination and is UL94 V-2 flammability rated.

Current Rating19A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 350762-5 technical specifications.

General

Approvals	CSA
Circuit Application	Power
Connector System	Wire-to-Board
Contact Current Rating	12A
Contact Finish - Mating	GOLD
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Retention	No (Without)
Contact Shape	Circular
Contact Type	Female Socket
Current Rating	19A
ELV	Compliant
Flammability Rating	UL94 V-2
Gender	Male
Housing Color	Natural
Insulation Color	Natural
Insulation Material	Nylon
Lead Free	Lead Free
Length	20.3mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	600V
Max Voltage Rating (DC)	600.6kV
Mount	Through Hole
Number of Circuits	6
Number of Contacts	6
Number of Ports	1
Number of Positions	6
Number of Power Positions	6
Number of Rows	3
Orientation	Straight
Package Quantity	100
Packaging	Bag
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	6.35mm
Plating Thickness	2.54um
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.25mm
Sealable	No (Without)
Series	Universal MATE-N-LOK
Strain Relief	No (Without)
Termination	Solder
VDE Tested	Yes
Width	14mm
