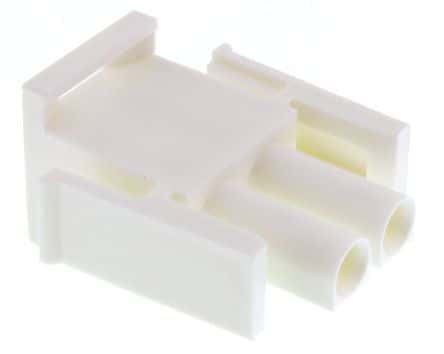

2-position, 6.35mm pitch wire-to-wire connector housing with straight, cable mount orientation. Features male pin contacts made of bronze, rated for 19A current and 600V voltage. Operates within a temperature range of -67°C to 221°C, with UL94 V-0 flammability rating. Housing is white, natural, or beige, and the component is RoHS compliant.
Voltage Rating600V
Current Rating19A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 350777-1 technical specifications.
General
Approvals
CSA
Color
Natural, Beige, White
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Material
Bronze
Contact Retention
No (Without)
Contact Style
Pin
Contact Type
Male or Female
Current Rating
19A
Depth
27.43mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
14.73mm
Housing Color
White
Lead Free
Lead Free
Max Current Rating
19A
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
6.35mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
DC Rated Voltage
600V
Width
14.73mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
10AWG
Compliance
RoHS
Compliant
