Four-position, straight, female socket power connector for wire-to-board applications. Features a 6.35mm pitch, 19A current rating, and 600V AC voltage rating. Constructed with bronze contacts plated in tin, offering a 12A contact current rating. Nylon housing in white with beige insulation, rated UL94 V-0 for flammability. Through-hole mounting with solder termination, suitable for 1.57mm PCB thickness.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 350826-1 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Beige
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Female Socket
Current Rating
19A
Depth
7.62mm
Flammability Rating
UL94 V-0
Height
13.97mm
Housing Color
White
Insulation Color
White
Insulation Material
Nylon
Length
26.67mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Power Positions
4
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
6.35mm
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Width
7.62mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350826-1 Datasheet
Download the complete datasheet for TE Connectivity 350826-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

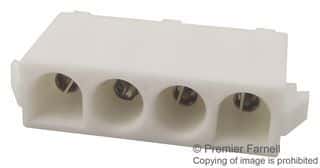

Product Images
