9-position, 3-row wire-to-board power connector with a straight, vertical PCB mount orientation. Features female socket contacts made of bronze with tin plating, rated for 12A and 19A current. Offers 600V AC/DC voltage rating, 221°C max operating temperature, and UL94 V-0 flammability. Includes mating alignment and retention, with a 6.35mm pitch and 20.32mm dimensions.
Voltage Rating600V
Current Rating19A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 350828-1 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Beige, White
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Female Socket
Current Rating
19A
Depth
20.32mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
13.97mm
Insulation Color
Natural
Insulation Material
Nylon
Length
20.32mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600.6kV
Mount
Through Hole, PCB
Number of Circuits
9
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Power Positions
9
Number of Rows
3
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
6.35mm
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.25mm
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Width
20.32mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350828-1 Datasheet
Download the complete datasheet for TE Connectivity 350828-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

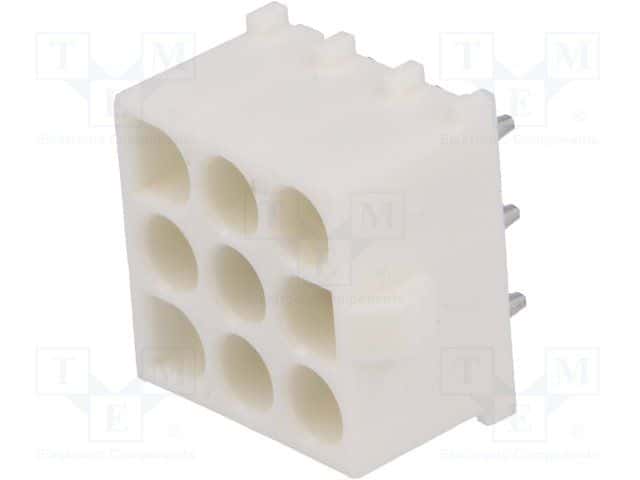

Product Images
