350833-1

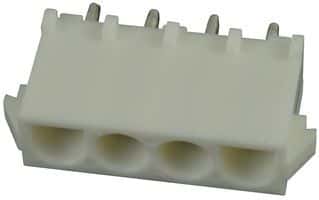

4-position, straight, wire-to-board power connector with a 6.35mm pitch. Features female socket contacts made of bronze with tin plating, rated for 12A contact current and 19A overall current. Housing and insulation are white nylon, with a UL94 V-0 flammability rating and a maximum operating temperature of 221°C. Mounts via through-hole termination with solder contacts, offering mating alignment and retention. CSA and VDE approved, with a 600V voltage rating.
