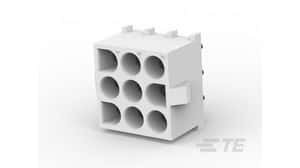

9-position, wire-to-board power connector with a 6.35mm pitch. Features a 12A contact current rating and 19A overall current rating, with a 600V voltage rating. Constructed with a nylon housing and bronze contacts with tin plating, this straight, through-hole mount connector offers mating alignment and retention. UL94 V-0 flammability rating and CSA approval ensure reliable performance.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 350835-1 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Female Socket
Current Rating
19A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
13.97mm
Housing Color
White
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Length
20.32mm
Material
Nylon
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Power Positions
9
Number of Rows
3
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
6.35mm
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.25mm
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Width
20.32mm
Compliance
RoHS
Compliant
