Six-position, straight, wire-to-board power connector with female socket contacts. Features a 6.35mm pitch, 12A contact current rating, and 19A overall current rating. Constructed with tin-plated bronze contacts and a natural colored housing, this connector supports up to 600V AC/DC and operates within a -40°C to 221°C temperature range. Mounts via through-hole termination with solder.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 350989-4 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Natural
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Retention
No (Without)
Contact Type
Female Socket
Current Rating
19A
ELV
Compliant
Flammability Rating
UL94 V-2
Height
13.97mm
Housing Color
Natural
Lead Free
Lead Free
Length
20.32mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600.6kV
Mount
Through Hole
Number of Contacts
6
Number of Ports
1
Number of Positions
6
Number of Power Positions
6
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
6.35mm
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.25inch
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Width
13.97mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 350989-4 Datasheet
Download the complete datasheet for TE Connectivity 350989-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

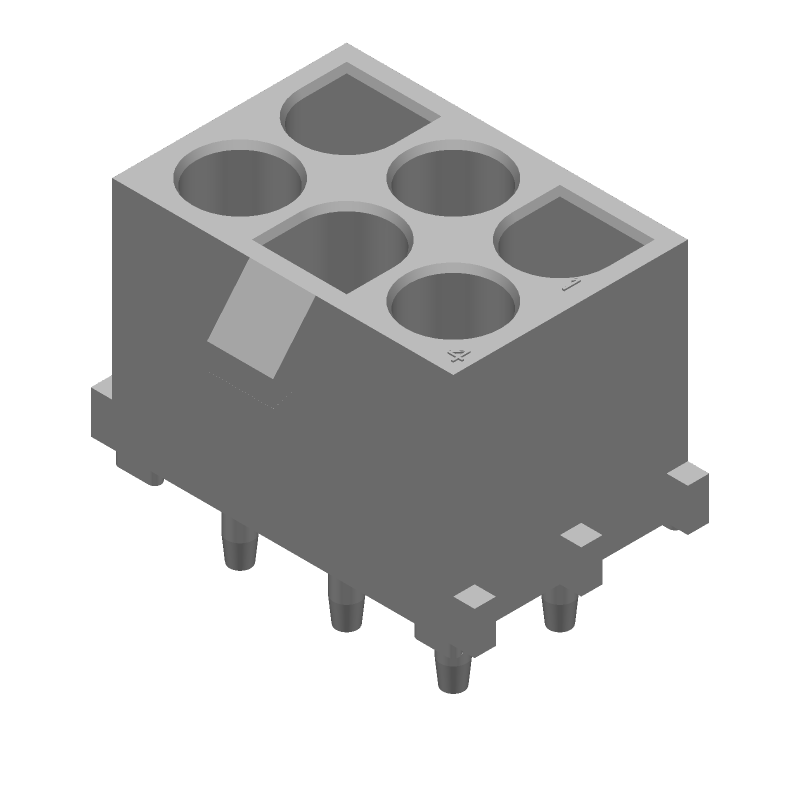

Product Images
