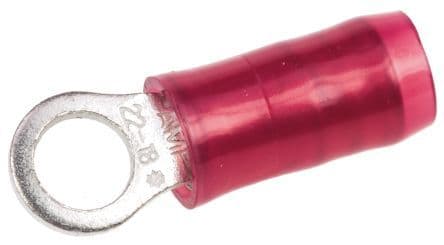

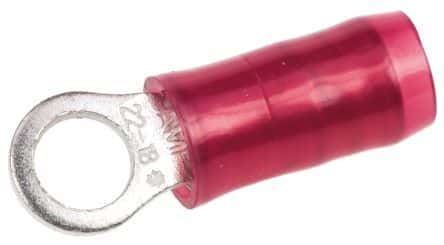

Ring tongue terminal featuring a copper body with tin plating, designed for 16-22AWG wire gauges. This insulated terminal, with a red nylon insulation, offers a straight orientation and a 300V AC voltage rating. It includes insulated wire support and a stud size of M3.5, with an inside diameter of 3.25mm.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 36149 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Red
Contact Material
Copper
Contact Plating
Tin
Depth
5.54mm
ELV
Compliant
Gender
Female
Government Qualified
Yes
Heavy Duty
No
Inside Diameter
3.25mm
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
0.125inch
Insulation Material
Nylon
Lead Free
Lead Free
Length
17.07mm
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
5000
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
3.68mm
Stud Size
M3.5
Termination
Crimp
Tongue Thickness
0.79mm
Voltage Rating (AC)
300V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
3.18mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 36149 Datasheet
Download the complete datasheet for TE Connectivity 36149 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
