2-position, straight, female jumper shunt with a 2.54mm pitch. Features bronze contacts with tin-lead plating and a 3A current rating. The black housing is constructed from UL94 V-0 rated material, operating between -40°C and 85°C. This component is designed for board-to-board applications.
Current Rating3A
Quick Jump:
Technical Specifications
TE Connectivity 382811-5 technical specifications.
General
Color
Black
Contact Current Rating
3A
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin, Lead
Current Rating
3A
Depth
6.35mm
ELV
Non-Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
6.35mm
Housing Color
Black
Lead Free
Not Applicable
Length
5.08mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
1500
Packaging
Box
Pitch
2.54mm
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
No
Series
AMPMODU
Termination
Solder
Width
5.08mm
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 382811-5 Datasheet
Download the complete datasheet for TE Connectivity 382811-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

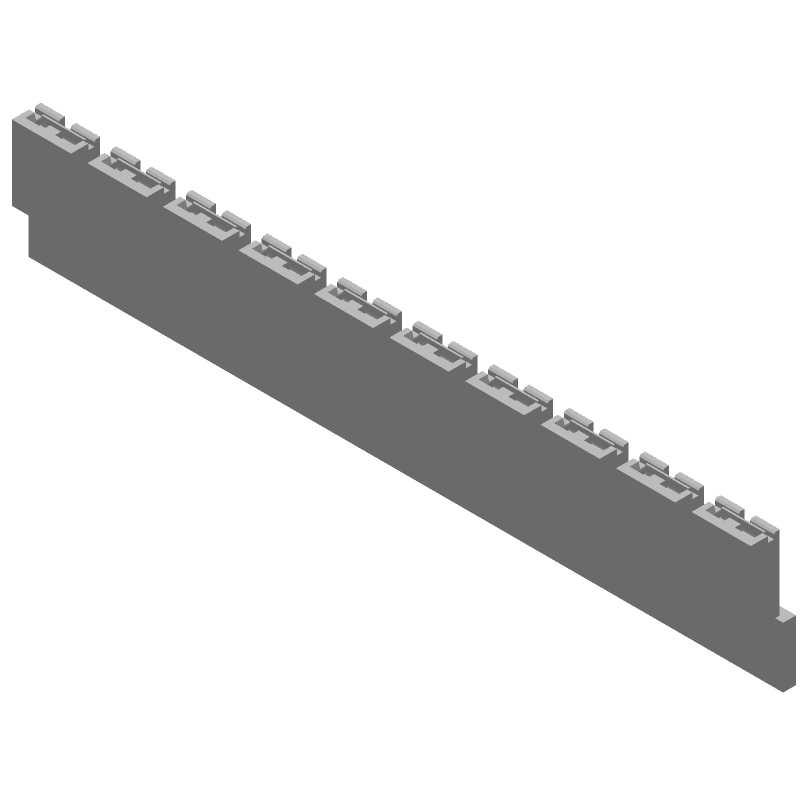

Product Images
