16-position, right-angle power connector for wire-to-board applications. Features brass contacts with gold and tin plating, rated for 5A and 250V AC. This through-hole mounted connector offers 16 power positions with a 3mm pitch and includes mating alignment and retention. Constructed with a black UL94 V-0 flammability rated housing, it operates from -40°C to 221°C and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 4-794678-6 technical specifications.
General
| Approvals | CSA |
| Circuit Application | Power |
| Color | Black |
| Connector System | Wire-to-Board |
| Contact Current Rating | 5A |
| Contact Material | Brass |
| Contact Plating | Gold, Tin |
| Contact Retention | No (Without) |
| Contact Type | Male Pin |
| Depth | 11.92mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Length | 28mm |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Ports | 1 |
| Number of Positions | 16 |
| Number of Power Positions | 16 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 130 |
| Packaging | Tray |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 0.063inch |
| Pitch | 0.118inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.118inch |
| Sealable | No (Without) |
| Series | Micro MATE-N-LOK |
| Strain Relief | No (Without) |
| Termination | SMD/SMT |
| VDE Tested | Yes |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 4-794678-6 Datasheet
Download the complete datasheet for TE Connectivity 4-794678-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

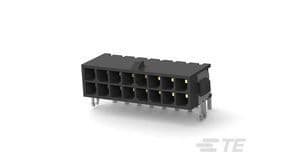

Product Images
