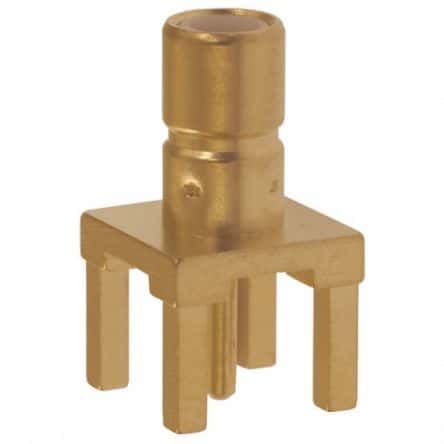

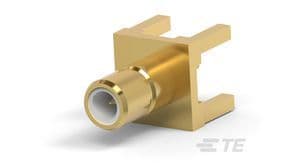

Straight SMB female RF connector for PCB mounting, featuring a brass body with gold plating and a brass center contact also plated in gold. This connector operates at frequencies up to 4 GHz with a 50-ohm impedance and a maximum insertion loss of 0.3dB. It utilizes a PTFE dielectric and offers a wide operating temperature range from -65°C to 165°C, with a voltage rating of 335V. Designed for through-hole PCB mounting, it supports up to 500 mating cycles and meets MIL-C-39012 standards.
Frequency4GHz
PackageSMB
Voltage Rating335V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 413990-1 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Package/Case
SMB
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Depth
6.35mm
Dielectric Material
PTFE
Frequency
4GHz
Gender
Female
Height
6.15mm
Housing Color
Gold
Impedance
50R
Insertion Loss
0.3dB
Insulation Material
Teflon
Length
6.35mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
165°C
Military Standard
MIL-C-39012
Min Operating Temperature
-65°C
Mount
Through Hole, PCB
Number of Ports
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Package Quantity
100
Packaging
Carton
PCB Mounting Orientation
Vertical
Plating
Gold
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 413990-1 Datasheet
Download the complete datasheet for TE Connectivity 413990-1 to view detailed technical specifications.
