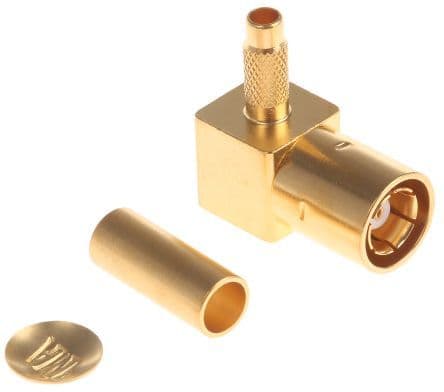

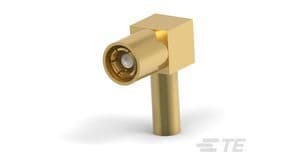

SMB Male Right Angle RF Connector, 4GHz, 50 Ohm, Gold Plated

TE Connectivity

414002-1

Name: 414002-1 TE Connectivity
Brand: TE Connectivity
SKU: 414002-1

SMB Male Right Angle RF Connector, 4GHz, 50 Ohm, Gold Plated

Right-angle male RF coaxial connector with a 50 Ohm impedance, designed for cable mounting. Features gold-plated brass body and copper contacts, with a PTFE dielectric. Operates up to 4 GHz with a maximum insertion loss of 0.6dB and a voltage rating of 335V. Suitable for temperatures from -65°C to 165°C, offering 500 mating cycles and meeting MIL-C-39012 standards.

Frequency4GHz

PackageSMB

Voltage Rating335V

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 414002-1 technical specifications.

General

Body Material	Brass
Body Plating	Gold
Package/Case	SMB
Center Contact Plating	Gold
Contact Material	Copper
Contact Plating	Gold
Depth	6.35mm
Diameter	6.35mm
Dielectric Material	PTFE
ELV	Compliant
Frequency	4GHz
Gender	Male
Height	16.38mm
Housing Color	Gold
Impedance	50R
Insertion Loss	0.6dB
Insulation Material	Teflon
Lead Free	Lead Free
Length	13.71mm
Mating Cycles	500
Max Frequency	4GHz
Max Operating Temperature	165°C
Military Standard	MIL-C-39012
Min Operating Temperature	-65°C
Mount	Free Hanging, Cable
Number of Ports	1
Operating Frequency	0 to 4 GHz
Orientation	Right Angle
Package Quantity	100
Packaging	Carton
Plating	Gold
Polarity	Standard, Normal
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Termination	Crimp
Voltage Rating	335V
