This is a non-insulated, straight, female ring tongue terminal designed for 20-24AWG wire. Featuring a brass body with tin plating, it offers a 16mm length and a 3.68mm stud diameter (M3.5). The terminal has a 7.36mm depth and 7.37mm width, with a 0.51mm tongue thickness. It is supplied on a reel/strip for efficient application and is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 41580 technical specifications.
General
Body Material
Brass
Body Plating
Tin
Contact Material
Brass
Contact Plating
Tin
Depth
7.36mm
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Non-Insulated
Insulation Diameter
2.54mm
Lead Free
Not Applicable
Length
16mm
Material
Brass
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
15000
Packaging
Strip
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Stud Diameter
3.68mm
Stud Size
M3.5
Termination
Circular
Tongue Thickness
0.51mm
Width
7.37mm
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
24AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 41580 Datasheet
Download the complete datasheet for TE Connectivity 41580 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

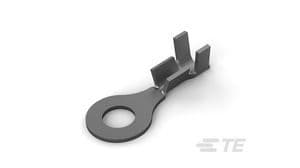

Product Images
