Right-angle shrouded header with 4 positions and 1 row, featuring a 2.54mm pitch. Male pin contacts made of brass with tin plating offer a 3A current rating and 250V voltage rating. Insulation material is thermoplastic with a UL94 V-0 flammability rating, operating within a -65°C to 105°C temperature range. Through-hole mounting with solder termination and a 3.3mm tail length.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5-103634-3 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Contact Current Rating
3A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.23inch
Contact Plating
Tin, Matte
Contact Retention
Yes (With)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
13.59mm
Flammability Rating
UL94 V-0
Height
13.59mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Length
12.7mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
42
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Pitch
2.54mm
Plating Thickness
2.54um
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MTE
Strain Relief
No (Without)
Tail Length
3.3mm
Termination
Crimp
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-103634-3 Datasheet
Download the complete datasheet for TE Connectivity 5-103634-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

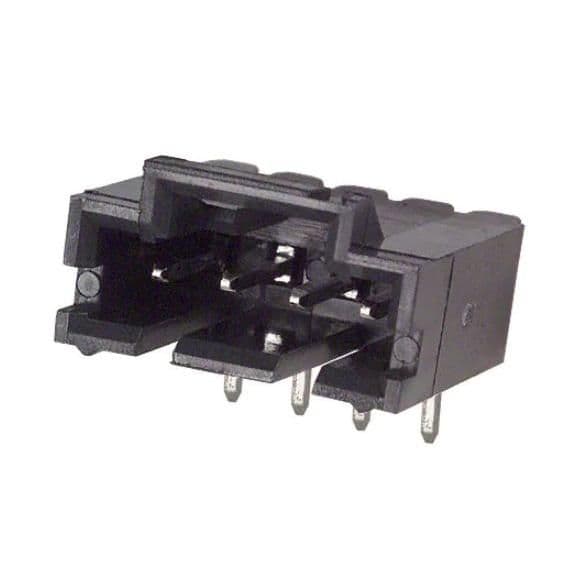

Product Images
