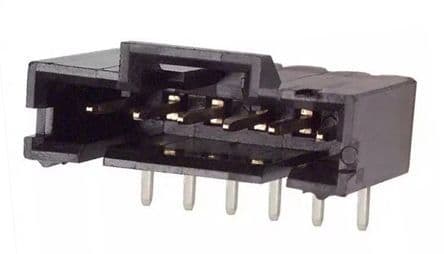

6 Position, 1 Row, Right Angle Header with a 2.54mm pitch. Features male pin contacts made of brass with gold plating for mating, offering a 3A current rating. Insulation material is black thermoplastic with a UL94 V-0 flammability rating. Through-hole mount design includes contact retention and mating alignment. Operating temperature range is -65°C to 105°C.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5-103635-5 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Contact Current Rating
3A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.23inch
Contact Plating
Gold, Tin, Matte
Contact Retention
Yes (With)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
13.59mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
13.59mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
17.78mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Orientation
Right Angle
Package Quantity
30
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Pitch
2.54mm
Plating
Gold
Plating Thickness
2.54um
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MTE
Strain Relief
No (Without)
Tail Length
3.3mm
Termination
Crimp
Width
0.7inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-103635-5 Datasheet
Download the complete datasheet for TE Connectivity 5-103635-5 to view detailed technical specifications.
