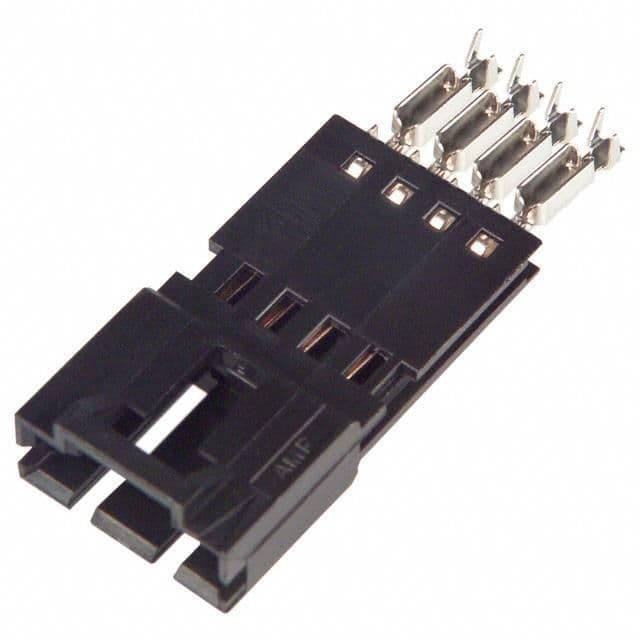

5-103945-3

This straight, male pin header features a 2.54mm pitch and 1-row configuration with 4 positions and 4 contacts. Designed for discrete wire termination via IDC, it supports wire gauges from 26AWG to 22AWG. The black thermoplastic housing boasts a UL94 V-0 flammability rating and a maximum operating temperature of 105°C. It includes mating alignment, mating connector lock, mating retention, and strain relief for secure connections. Contact current rating is 3A, with tin plating on bronze contacts.
