5-103958-7

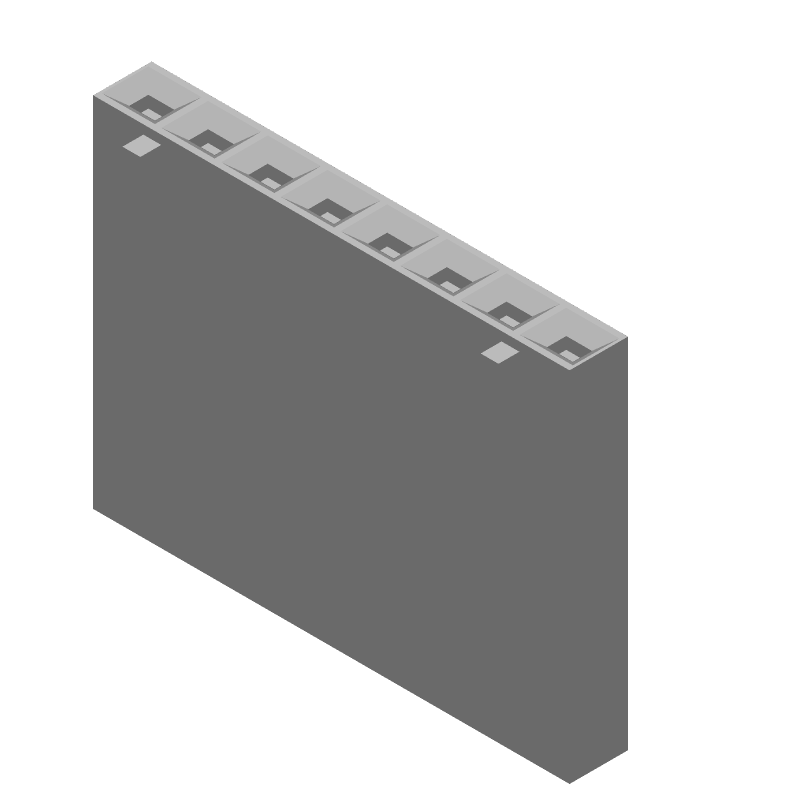

8-position, 1-row wire-to-board receptacle with a 2.54mm pitch. Features female socket contacts made of tin-plated bronze, rated for 3A current and 267V operating voltage. Designed for straight orientation, cable mounting with IDC termination, and supports discrete or ribbon wire gauges from 26AWG to 22AWG. Includes mating alignment, connector lock, strain relief, and operates within a -65°C to 105°C temperature range. Housing is black, UL94 V-0 flammability rated, and the component is RoHS compliant.
