5-104069-1

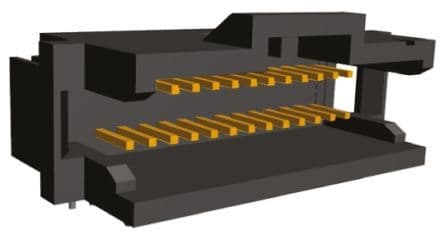

20-position, 2-row shrouded header with a 1.27mm pitch, designed for right-angle side entry and through-hole mounting. Features gold-plated copper alloy male pin contacts with a 1A current rating and 0.1-inch mating length. Constructed with black thermoplastic insulation and housing, this component offers a voltage rating of 500V (AC) and operates within a temperature range of -65°C to 105°C. It includes mating alignment, mating connector lock, and PCB mount retention, with a UL94 V-0 flammability rating.
