40-position, 2-row shrouded header with a 1.27mm pitch. Features right-angle, side-entry, through-hole termination for board mounting. Copper alloy contacts with gold and tin plating offer a 1A current rating and 500V voltage rating. Black housing, UL94 V-0 flammability rating, and CSA approval ensure reliable performance.
Voltage Rating500V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5-104069-6 technical specifications.
General
Approvals
CSA
Board Standoff
Yes (With)
Color
Black
Contact Current Rating
1A
Contact Material
Copper Alloy
Contact Mating Length
0.1inch
Contact Plating
Gold, Tin
Contact Post Length
0.1inch
Contact Protection
Yes (With)
Contact Shape
Round
Contact Style
Pin
Current Rating
1A
Depth
13.72mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Lead Length
2.54mm
Length
31.75mm
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Contacts
40
Number of Positions
40
Number of Rows
2
Operating Supply Voltage
30V
Orientation
Right Angle
Package Quantity
16
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.397mm
Pitch
0.05inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU System 50
Shrouded
Yes (With)
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Voltage Rating
500V
Voltage Rating (AC)
30V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-104069-6 Datasheet
Download the complete datasheet for TE Connectivity 5-104069-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

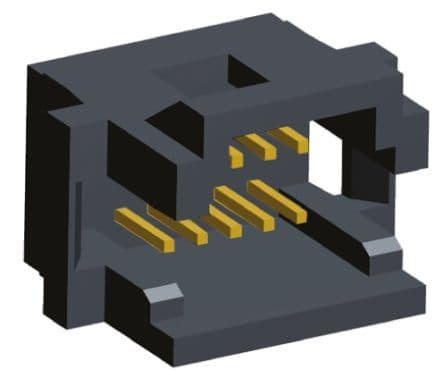

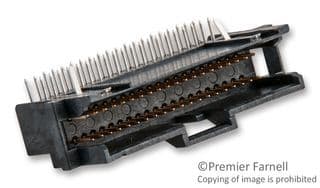

Product Images
