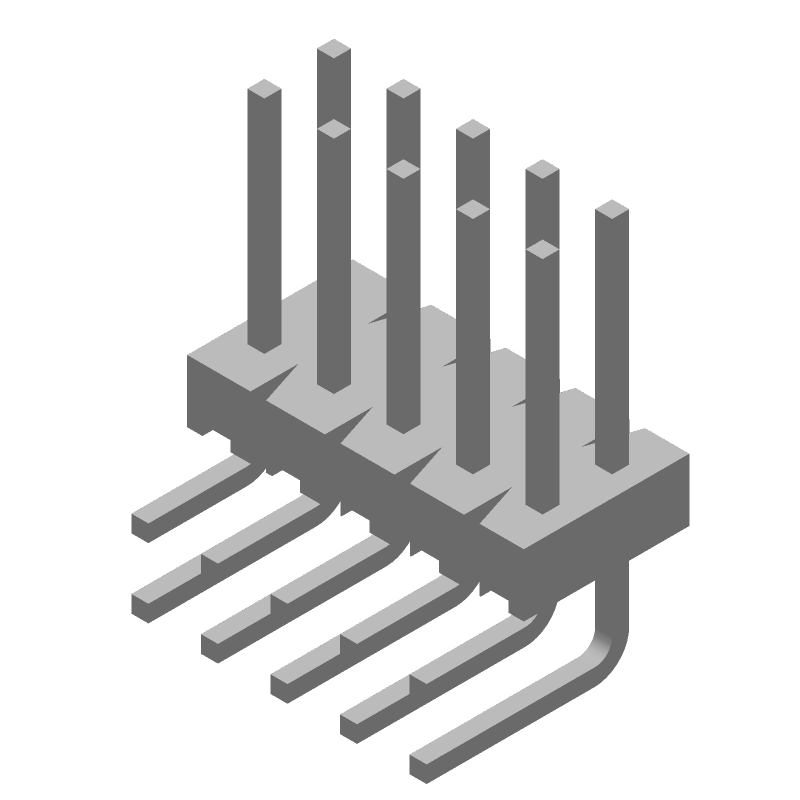

10 Pos 2.54mm RA Thru-Hole Header, 3A, Gold/Tin Plated

TE Connectivity

5-146309-5

Name: 5-146309-5 TE Connectivity
Brand: TE Connectivity
SKU: 5-146309-5

10 Pos 2.54mm RA Thru-Hole Header, 3A, Gold/Tin Plated

10-position, 2-row unshrouded header with 2.54mm pitch and 2.54mm row spacing. Features male pin contacts made of bronze with gold, tin, lead, matte plating and a 3A current rating. Right-angle, through-hole termination for PCB mounting. High temperature housing, black color, and operates from -65°C to 105°C. RoHS and ELV compliant, with UL94 V-0 flammability rating.

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5-146309-5 technical specifications.

General

Approvals	CSA
Board Standoff	No (Without)
Color	Black
Contact Current Rating	3A
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	8.08mm
Contact Plating	Gold, Tin, Lead, Matte
Contact Post Length	0.11inch
Contact Protection	No (Without)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3A
Depth	14.18mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
High Speed Serial Data Connector	No
High Temperature Housing	Yes
Housing Color	Black
Keyed	No
Lead Free	Lead Free
Length	12.29mm
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	10
Number of Positions	10
Number of Rows	2
Orientation	Right Angle
Package Quantity	50
Packaging	Tray
PCB Mount Retention	Without
PCB Mounting Orientation	Right Angle
PCB Thickness	0.063inch
Pitch	2.54mm
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU MOD II
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
