Unshrouded Header, 10 positions, 1 row, 2.54mm pitch, straight orientation, male pin contacts made of copper alloy with gold, tin, lead plating. Features a 3A current rating, square contact shape, and a 0.11-inch contact post length. Black, high-temperature housing with mating alignment and board standoff. CSA approved, UL94 V-0 flammability rating, RoHS compliant, and operates from -65°C to 105°C. Packaged on tape and reel for through-hole mounting.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5-146868-1 technical specifications.
General
| Approvals | CSA |
| Board Standoff | Yes (With) |
| Color | Black |
| Contact Current Rating | 3A |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Mating Length | 0.23inch |
| Contact Plating | Gold, Tin, Lead |
| Contact Post Length | 0.11inch |
| Contact Shape | Square |
| Contact Style | Pin |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 2.34mm |
| Flammability Rating | UL94 V-0 |
| Gasket | No (Without) |
| High Speed Serial Data Connector | No |
| High Temperature Housing | Yes |
| Housing Color | Black |
| Keyed | No |
| Lead Length | 2.794mm |
| Mating Alignment | Yes (With) |
| Mating Connector Lock | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 25000 |
| Packaging | Tape and Reel |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Pitch | 2.54mm |
| RoHS Compliant | Yes |
| Row Spacing | 2.54mm |
| Selectively Loaded | No (Without) |
| Series | AMPMODU® |
| Stabilizers | No (Without) |
| Strain Relief | No (Without) |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5-146868-1 Datasheet
Download the complete datasheet for TE Connectivity 5-146868-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

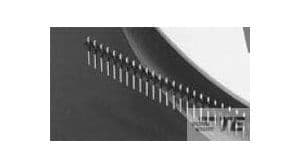

Product Images
